Kaolin Clay Separation from Feldspar in Aggregate Processing
The sand and aggregate industry plays a critical role in construction, demanding high-purity materials for applications like concrete, ceramics, and glass. A key challenge is separating kaolin clay from feldspar—a common impurity in deposits—to meet quality standards. This process requires specialized crushing, grinding, and separation equipment tailored to mineralogical properties.
Industry Background
Feldspar and kaolin often coexist in sedimentary deposits. While feldspar is valued for its alumina content in glassmaking, kaolin’s fine particle size and plasticity make it ideal for ceramics and paper coatings. Efficient separation ensures both minerals meet market specifications. Traditional methods rely on physical differences: kaolin’s softer nature (Mohs 2-2.5) versus feldspar’s hardness (6-6.5).
Core Equipment & Process

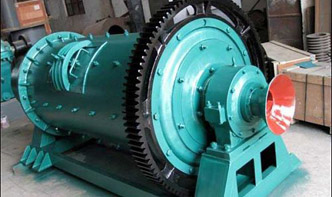

1. Crushing & Grinding: Jaw crushers or cone crushers reduce raw ore to <10mm. Subsequent ball milling or Raymond mills pulverize the material, ensuring liberation without over-grinding kaolin into ultrafine particles.
2. Classification: Hydrocyclones or air classifiers separate particles by size; kaolin’s finer fractions (<20μm) are diverted early to minimize damage.
3. Magnetic Separation: High-gradient magnetic separators (HGMS) remove iron impurities from feldspar, which often contains paramagnetic minerals.
4. Froth Flotation: For complex ores, pH-controlled flotation isolates feldspar using amine collectors while depressing kaolin.
Key Challenges & Solutions
FAQ Section
Q: Can gravity separation replace flotation?
A: Only for coarse particles; fine kaolin-clay fractions require froth flotation or selective dispersion.
Q: How to minimize kaolin loss during processing?
A: Optimize grinding fineness and use multi-stage hydrocyclones to recover fines early.
Engineering Case
A Brazilian plant processing granite-derived sand achieved 95% kaolin purity by combining rod milling (to preserve clay structure), spiral classifiers for de-sliming, and HGMS for iron removal—boosting product value by 30%.
By integrating tailored comminution and separation technologies, producers can transform mixed deposits into high-value commodities efficiently—ensuring sustainability amid rising demand for purified industrial minerals.”
